Expert Security UK’s automatic car park barriers offer secure, low-maintenance access control with a fast, adjustable lifting boom, ideal for busy commercial sites
Looking for an advanced, secure, low-maintenance access control system for your business? Our automatic car park barriers are ideal for commercial and industrial car parks that need to restrict unauthorised access, deter opportunistic thieves, and reduce crowding whilst still maintaining their busy traffic flow. With our electric car park barriers, you can ensure the best level of security for your business without compromising on ease of access and operational efficiency.

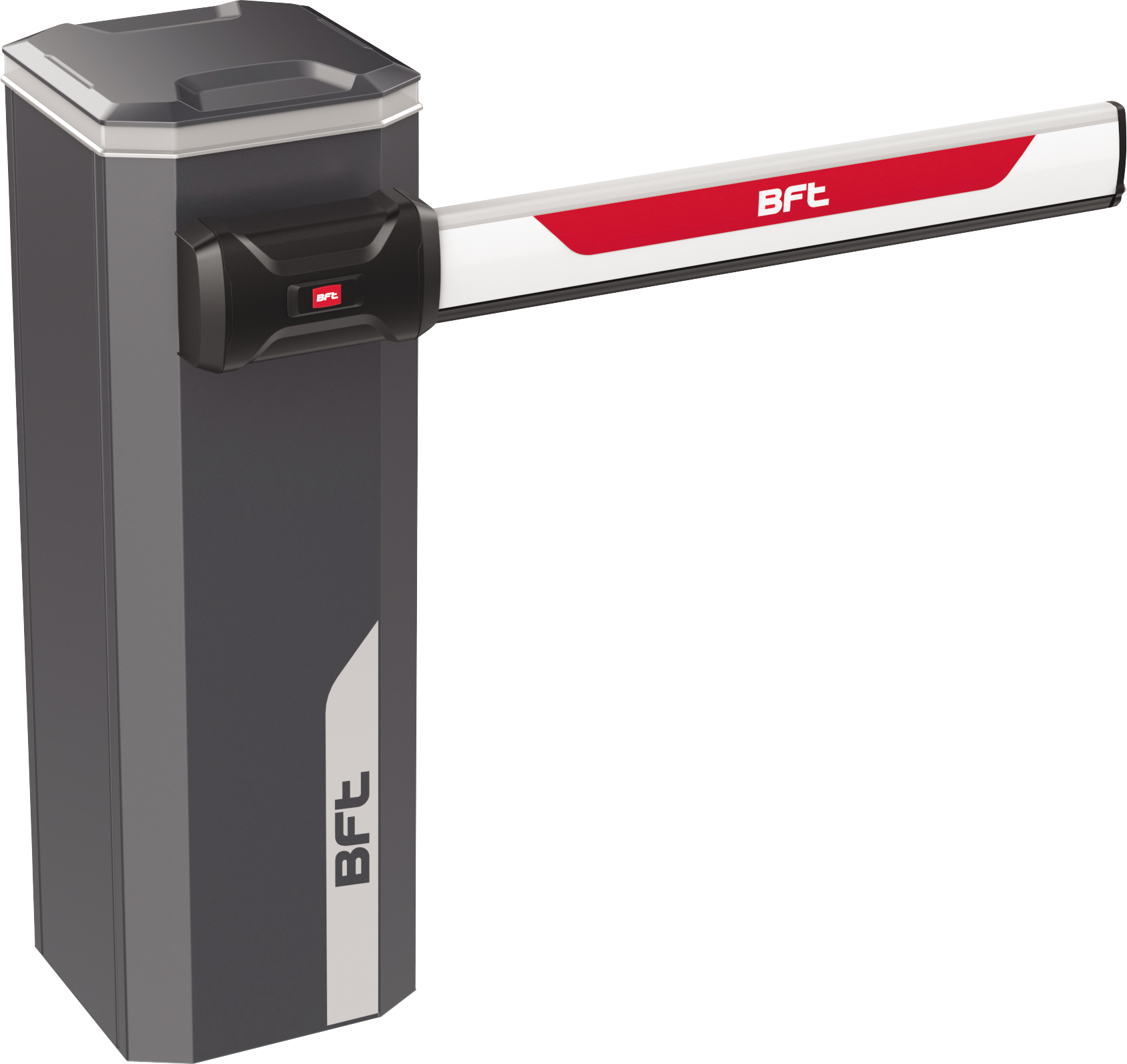

Here at Expert Security UK, our automatic barriers feature a vertical lifting boom with a maximum length of 5–7 metres and a powerful 3-phase motor, helping it reach an adjustable speed of 2–7 seconds for maximum efficiency and access control. Their simplicity means that they can be quickly installed and partnered with a wide range of access control systems to make it easier for people to enter and exit your premises, including:
• Proximity cards
• Keypads
• GSM intercoms
• ANPR (automatic number plate recognition)
Maximum Boom Length | 7000m Plain Pole Only 6000m With Bottom Skirt 5000m With Hi-bar |
Opening/closing Time | 2.0-7.0 Seconds (adjustable) |
Power Supply | Single Phase 230v 50hz 4.0amps |
Drive Unit | 3 Phase Motor And Wormed Gearbox |
Finish | Aluminium And Polyester Powder Coated |
Accessories | Pre-wired Loop Detector Bases |
Cycles | 100% Continuous Duty Cycle Rating |
Control Panel | Programmable PCB & Inverter Driven |
Boom Diameter | 86mm X 60mm Oval |
Safety Edge Controller | Direct Connection Of Separate 8.2k Ohm Safety Contact Edge |
Box Dimensions | 436mm X 433mm X 1135mm |
Ambient Humidity | -10 To 55°c |
Fixings | M12 Anchor Shield Bolts Included |
Control Panel IP Rating | IP57 |
Settings | Programmable Configuration As Standard |
We have compiled a list of some questions that are worthwhile asking when researching and requesting quotes.
Expert Security UK provides nationwide coverage for both installation and delivery services. No matter where you're located, we are committed to delivering and installing our high-quality security solutions to meet your needs. Whether you are in a major city or a more remote location, our team is ready to assist you with professional security installations tailored to your requirements.
The time required for installation depends on the complexity of the system and the specific site conditions. A basic barrier installation may take just a day or two, while more complex automated gates can take several weeks. For all projects, our dedicated project managers will provide a detailed timeline and ensure you are informed every step of the way regarding progress and expected completion dates.
Yes, all of our installations fully comply with UK safety regulations, including BS EN 12453, which governs the safety of powered gates. We also incorporate essential safety features such as photocells, safety edges, and force testing to ensure the highest standards of safety for your property.
In many instances, we can retrofit automation to your existing gate, provided it meets the necessary safety and structural standards. After assessing your current system, we will recommend the best options and advise on any required modifications to ensure optimal performance and security.
Yes, we offer both maintenance contracts and repair services to ensure your security systems remain fully operational. Regular servicing helps prevent unexpected breakdowns and extends the life of your gates and barriers, providing you with peace of mind.
At Expert Security UK, we provide a comprehensive range of security solutions, including both automated and manual gates, swing and sliding gates, bollards, turnstiles, and rising arm barriers. These products are suitable for residential, commercial, and industrial properties. Depending on your specific needs, there may be several options available, each offering varying levels of security to meet your requirements.
At Expert Security UK, we are committed to providing a comprehensive, reliable service tailored to your needs:
Reliable Full-Circle Service:
From the initial design phase to ongoing aftercare and maintenance, our dedicated team ensures expert support throughout your entire journey with us.
Competitive Pricing:
We aim to provide exceptional value for money, offering top-quality security solutions at competitive prices without compromising on performance or durability.
Modern Technology:
We pride ourselves on using the latest in security technology, ensuring that every product we install is equipped with cutting-edge features and sophisticated design.
Bespoke Service:
Every client is unique, and we offer bespoke security solutions tailored specifically to your requirements. We never take a one-size-fits-all approach and always prioritize your individual needs.
