Automatic Car Park Barrier

Car Park Barriers

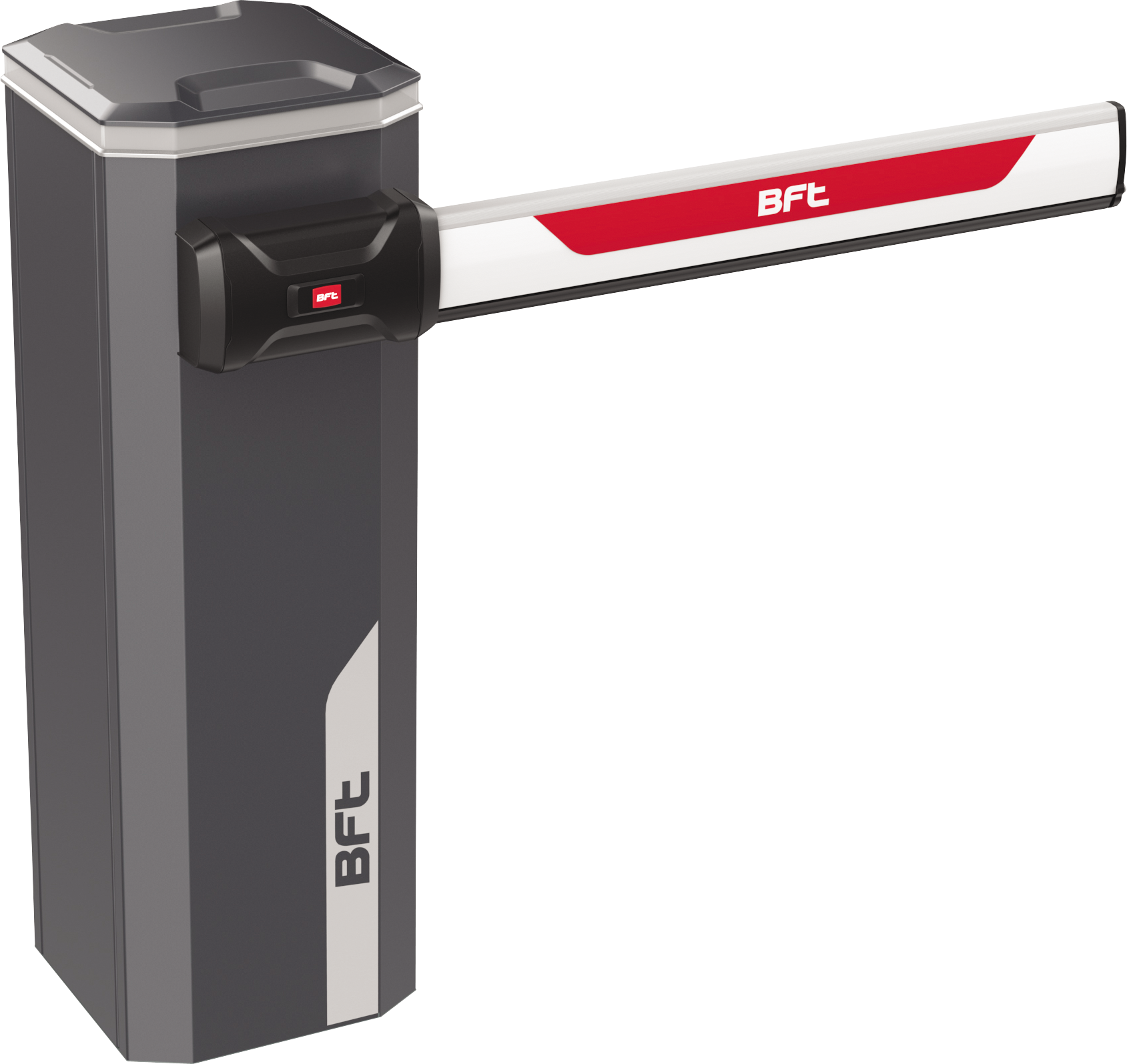

Automatic Car Park Barrier

Our Automatic Car Park Barriers are bespoke and made to size, providing secure, efficient access for car parks. With integrated access control systems, they ensure smooth traffic flow while maintaining high security for your site.

Get a FREE, no-obligation survey, consultation & quote!
Approved Contractor Paxton Registered Installer Safe contractor BFT CHAS Citation Approved Logo

Bespoke, Fast, Reliable & Secure Access Control for Car Parks

Automatic Car Park Barriers – Secure & Efficient Access Control

Managing car park access shouldn’t be a hassle. With automatic barriers, you can streamline vehicle flow, improve security, and keep unauthorised vehicles out.

Custom-built to size – designed to fit your specific entry points
High-speed operation – adjustable speed of 2–7 seconds for quick access
Heavy-duty construction – durable, powder-coated boom (up to 7m)
Seamless integration – works with ANPR, keypads, proximity cards & GSM intercoms
Weather-resistant & low-maintenance – reliable performance in all conditions

Featuring a robust 3-phase motor, our automatic barriers provide a long-lasting, cost-effective solution for business parks, retail centers, private car parks & industrial sites. Plus, with multiple access control options, managing your site’s security has never been easier.

Let Expert Security UK design and install a tailored barrier system to suit your premises.

Request A Quote

What Our Customers Say

Technical Details

Maximum Boom Length 7000m Plain Pole Only 6000m With Bottom Skirt 5000m With Hi-bar
Opening/closing Time 2.0-7.0 Seconds (adjustable)
Power Supply Single Phase 230v 50hz 4.0amps
Drive Unit 3 Phase Motor And Wormed Gearbox
Finish Aluminium And Polyester Powder Coated
Accessories Pre-wired Loop Detector Bases
Cycles 100% Continuous Duty Cycle Rating
Control Panel Programmable PCB & Inverter Driven
Boom Diameter 86mm X 60mm Oval
Safety Edge Controller Direct Connection Of Separate 8.2k Ohm Safety Contact Edge
Box Dimensions 436mm X 433mm X 1135mm
Ambient Humidity -10 To 55°c
Fixings M12 Anchor Shield Bolts Included
Control Panel IP Rating IP57
Settings Programmable Configuration As Standard
Download Documents

Frequently Asked Questions

Any thing you have in mind, we got the answer

We have compiled a list of some questions that are worthwhile asking when researching and requesting quotes.

1 - What areas do you service, install, and deliver to?

Expert Security UK provides nationwide coverage for both installation and delivery services. No matter where you're located, we are committed to delivering and installing our high-quality security solutions to meet your needs. Whether you are in a major city or a more remote location, our team is ready to assist you with professional security installations tailored to your requirements.

2 - How long does installation take?

The time required for installation depends on the complexity of the system and the specific site conditions. A basic barrier installation may take just a day or two, while more complex automated gates can take several weeks. For all projects, our dedicated project managers will provide a detailed timeline and ensure you are informed every step of the way regarding progress and expected completion dates.

3 - Are your installations compliant with UK safety regulations?

Yes, all of our installations fully comply with UK safety regulations, including BS EN 12453, which governs the safety of powered gates. We also incorporate essential safety features such as photocells, safety edges, and force testing to ensure the highest standards of safety for your property.

4 - Can you automate an existing gate?

In many instances, we can retrofit automation to your existing gate, provided it meets the necessary safety and structural standards. After assessing your current system, we will recommend the best options and advise on any required modifications to ensure optimal performance and security.

5 - Do you offer maintenance and repair services?

Yes, we offer both maintenance contracts and repair services to ensure your security systems remain fully operational. Regular servicing helps prevent unexpected breakdowns and extends the life of your gates and barriers, providing you with peace of mind.

6 - What types of products do you install?

At Expert Security UK, we provide a comprehensive range of security solutions, including both automated and manual gates, swing and sliding gates, bollards, turnstiles, and rising arm barriers. These products are suitable for residential, commercial, and industrial properties. Depending on your specific needs, there may be several options available, each offering varying levels of security to meet your requirements.

7 - Why Choose Expert Security UK?

At Expert Security UK, we are committed to providing a comprehensive, reliable service tailored to your needs:
Reliable Full-Circle Service:
From the initial design phase to ongoing aftercare and maintenance, our dedicated team ensures expert support throughout your entire journey with us.
Competitive Pricing:
We aim to provide exceptional value for money, offering top-quality security solutions at competitive prices without compromising on performance or durability.
Modern Technology:
We pride ourselves on using the latest in security technology, ensuring that every product we install is equipped with cutting-edge features and sophisticated design.
Bespoke Service:
Every client is unique, and we offer bespoke security solutions tailored specifically to your requirements. We never take a one-size-fits-all approach and always prioritize your individual needs.
